How to communicate to the user

As a designer, there are times you want to bring something to the attention of the user. I am not talking about generic information that can go in the documentation, but rather a message that is tailored specifically to this pattern, much like this pattern is specifically tailored to the user.

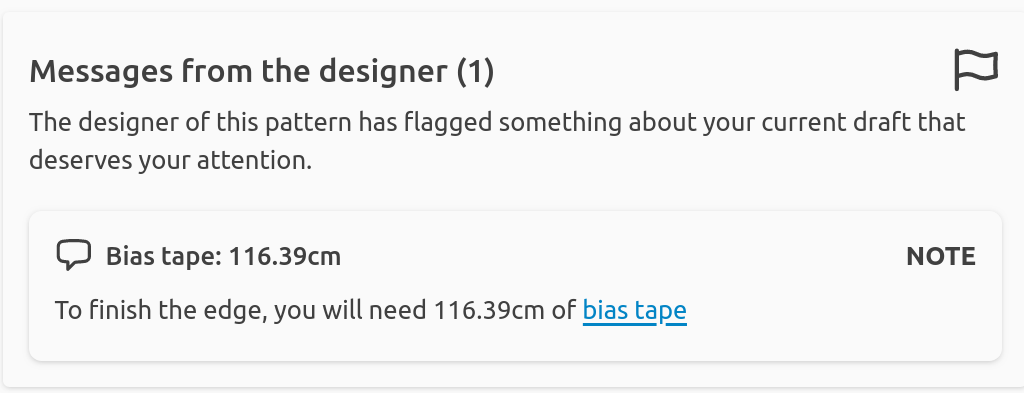

Doing so is possible with the various store.flag methods, and below is our updated bib making use of this. It's important to realize that things will look the same here. But if you load this pattern in the development environment (or on open clothes.org for that matter) the user will see this:

It's a simple example, but I hope it gets the point across.

Finally, keep in mind that we are now straddling the world of the core library and frontend integration. These messages won't do anything unless you have a frontend the shows them.

In other words core does not care. We are merely storing data in the store and relying on the frontend to show this data to the user. We merely offer standard methods to do so, but you can choose to ignore this info, or show it in a different way in your own frontend implementation.

预览

代码

function draftBib({
  Point,
  points,
  Path,
  paths,
  utils,
  store,
  measurements,
  options,
  macro,
  Snippet,
  snippets,
  complete,
  units,
  part,
}) {

  /*
    * Construct the neck opening
    */
  const target = (measurements.head * options.neckRatio) / 4
  let tweak = 1
  let delta
  do {
    points.right = new Point((tweak * measurements.head) / 10, 0)
    points.bottom = new Point(0, (tweak * measurements.head) / 12)

    points.rightCp1 = points.right.shift(90, points.bottom.dy(points.right) / 2)
    points.bottomCp2 = points.bottom.shift(0, points.bottom.dx(points.right) / 2)

    paths.neck = new Path()
      .move(points.right)
      .curve(points.rightCp1, points.bottomCp2, points.bottom)

    delta = paths.neck.length() - target
    if (delta > 0) tweak = tweak * 0.99
    else tweak = tweak * 1.02
  } while (Math.abs(delta) > 1)

  points.rightCp2 = points.rightCp1.flipY()
  points.bottomCp1 = points.bottomCp2.flipX()

  points.left = points.right.flipX()
  points.leftCp1 = points.rightCp2.flipX()
  points.leftCp2 = points.rightCp1.flipX()

  points.top = points.bottom.flipY()
  points.topCp1 = points.bottomCp2.flipY()
  points.topCp2 = points.bottomCp1.flipY()

  /*
    * Construct the outline
    */
  let width = measurements.head * options.widthRatio
  let length = measurements.head * options.lengthRatio

  points.topLeft = new Point(width / -2, points.top.y - (width / 2 - points.right.x))
  points.topRight = points.topLeft.shift(0, width)
  points.bottomLeft = points.topLeft.shift(-90, length)
  points.bottomRight = points.topRight.shift(-90, length)

  points.edgeLeft = new Point(points.topLeft.x, points.left.y)
  points.edgeRight = new Point(points.topRight.x, points.right.y)
  points.edgeTop = new Point(0, points.topLeft.y)

  points.edgeLeftCp = points.edgeLeft.shiftFractionTowards(points.topLeft, 0.5)
  points.edgeRightCp = points.edgeLeftCp.flipX()
  points.edgeTopLeftCp = points.edgeTop.shiftFractionTowards(points.topLeft, 0.5)
  points.edgeTopRightCp = points.edgeTopLeftCp.flipX()

  /*
    * Round the end of the straps
    */
  let strap = points.edgeTop.dy(points.top)

  points.提示Right = points.edgeTop.translate(strap / 2, strap / 2)
  points.提示RightTop = new Point(points.提示Right.x, points.edgeTop.y)
  points.提示RightBottom = new Point(points.提示Right.x, points.top.y)

  /*
    * Macros will return the auto-generated IDs
    */
  const ids1 = {
    提示RightTop: macro('round', {
      id: '提示RightTop',
      from: points.edgeTop,
      to: points.提示Right,
      via: points.提示RightTop,
    }),
    提示RightBottom: macro('round', {
      id: '提示RightBottom',
      from: points.提示Right,
      to: points.top,
      via: points.提示RightBottom,
    }),
  }

  /*
    * Create points from them with easy names
    */
  for (const side in ids1) {
    for (const id of ['start', 'cp1', 'cp2', 'end']) {
      points[`${side}${utils.capitalize(id)}`] = points[ids1[side].points[id]].copy()
    }
  }

  /*
    * Rotate straps so they don't overlap
    */
  let rotateThese = [
    'edgeTopLeftCp',
    'edgeTop',
    '提示Right',
    '提示RightTop',
    '提示RightTopStart',
    '提示RightTopCp1',
    '提示RightTopCp2',
    '提示RightTopEnd',
    '提示RightBottomStart',
    '提示RightBottomCp1',
    '提示RightBottomCp2',
    '提示RightBottomEnd',
    '提示RightBottom',
    'top',
    'topCp2',
  ]

  while (points.提示RightBottomStart.x > -1) {
    for (let p of rotateThese) points[p] = points[p].rotate(1, points.edgeLeft)
  }

  /*
    * Add points to anchor snaps on
    */
  points.snapLeft = points.top.shiftFractionTowards(points.edgeTop, 0.5)

  /*
    * Mirror points to the other side
    */
  points.edgeTopRightCp = points.edgeTopLeftCp.flipX()
  points.topCp1 = points.topCp2.flipX()
  points.提示LeftTopStart = points.提示RightTopStart.flipX()
  points.提示LeftTopCp1 = points.提示RightTopCp1.flipX()
  points.提示LeftTopCp2 = points.提示RightTopCp2.flipX()
  points.提示LeftTopEnd = points.提示RightTopEnd.flipX()
  points.提示LeftBottomStart = points.提示RightBottomStart.flipX()
  points.提示LeftBottomCp1 = points.提示RightBottomCp1.flipX()
  points.提示LeftBottomCp2 = points.提示RightBottomCp2.flipX()
  points.提示LeftBottomEnd = points.提示RightBottomEnd.flipX()
  points.snapRight = points.snapLeft.flipX()

  /*
    * Round the bottom of the bib
    * Radius is fixed, but you could use an option for it)
    *
    * Macros will return the auto-generated IDs
    */
  const ids2 = {
    bottomLeft: macro('round', {
      id: 'bottomLeft',
      from: points.topLeft,
      to: points.bottomRight,
      via: points.bottomLeft,
      radius: points.bottomRight.x / 4,
    }),
    bottomRight: macro('round', {
      id: 'bottomRight',
      from: points.bottomLeft,
      to: points.topRight,
      via: points.bottomRight,
      radius: points.bottomRight.x / 4,
    }),
  }
  /*
    * Create points from them with easy names
    */
  for (const side in ids2) {
    for (const id of ['start', 'cp1', 'cp2', 'end']) {
      points[`${side}${utils.capitalize(id)}`] = points[ids2[side].points[id]].copy()
    }
  }

  /*
    * Construct the path
    */
  paths.seam = new Path()
    .move(points.edgeLeft)
    .line(points.bottomLeftStart)
    .curve(points.bottomLeftCp1, points.bottomLeftCp2, points.bottomLeftEnd)
    .line(points.bottomRightStart)
    .curve(points.bottomRightCp1, points.bottomRightCp2, points.bottomRightEnd)
    .line(points.edgeRight)
    .curve(points.edgeRightCp, points.edgeTopRightCp, points.提示LeftTopStart)
    .curve(points.提示LeftTopCp1, points.提示LeftTopCp2, points.提示LeftTopEnd)
    .curve(points.提示LeftBottomCp1, points.提示LeftBottomCp2, points.提示LeftBottomEnd)
    .curve(points.topCp1, points.rightCp2, points.right)
    .curve(points.rightCp1, points.bottomCp2, points.bottom)
    .curve(points.bottomCp1, points.leftCp2, points.left)
    .curve(points.leftCp1, points.topCp2, points.提示RightBottomEnd)
    .curve(points.提示RightBottomCp2, points.提示RightBottomCp1, points.提示RightBottomStart)
    .curve(points.提示RightTopCp2, points.提示RightTopCp1, points.提示RightTopStart)
    .curve(points.edgeTopLeftCp, points.edgeLeftCp, points.edgeLeft)
    .close()
    .attr('class', 'fabric')

  /*
    *
    *  Annotations
    *
    */

  /*
    * Let the user know about the bias tape and fabric requirements
    */
  store.flag.注意({
    msg: 'tutorial:biasTapeLength',
    replace: {
      l: units(paths.seam.length()),
    },
  })

  /*
    * Cut list
    */
  store.cutlist.addCut({ cut: 1, from: 'fabric' })

  /*
    * Add the snaps
    */
  snippets.snapStud = new Snippet('snap-stud', points.snapLeft)
  snippets.snapSocket = new Snippet('snap-socket', points.snapRight).attr('opacity', 0.5)

  /*
    * Add the bias tape
    */
  if (complete)
    paths.bias = paths.seam
      .offset(-5)
      .addClass('注意 dashed')
      .addText('finishWithBiasTape', 'center fill-注意')

  /*
    * Add the title
    */
  points.title = points.bottom.shift(-90, 45)
  macro('title', {
    at: points.title,
    nr: 1,
    title: 'bib',
    align: 'center',
    scale: 0.8,
  })

  /*
    * Add the scalebox
    */
  points.scalebox = points.title.shift(-90, 65)
  macro('scalebox', { at: points.scalebox })

  /*
    * Add the logo
    */
  points.logo = new Point(0, 0)
  snippets.logo = new Snippet('logo', points.logo)

  /*
    * Add dimensions
    */
  macro('hd', {
    id: 'wFull',
    from: points.bottomLeftStart,
    to: points.bottomRightEnd,
    y: points.bottomLeft.y + 15,
  })
  macro('vd', {
    id: 'hBottomToOpeningBottom',
    from: points.bottomRightStart,
    to: points.bottom,
    x: points.bottomRight.x + 15,
  })
  macro('vd', {
    id: 'hBottomToOpeningCenter',
    from: points.bottomRightStart,
    to: points.right,
    x: points.bottomRight.x + 30,
  })
  macro('vd', {
    id: 'hTotal',
    from: points.bottomRightStart,
    to: points.提示LeftTopStart,
    x: points.bottomRight.x + 45,
  })
  macro('hd', {
    id: 'wOpening',
    from: points.left,
    to: points.right,
    y: points.left.y + 25,
  })
  macro('ld', {
    id: 'wStrap',
    from: points.提示LeftBottomEnd,
    to: points.提示LeftTopStart,
    d: -15,
  })

  return part
}
